GIGABYTE

PN:9MU72SU0MR-00-10G

PLACA BASE GIGABYTE SERVER MU72-SU0

LGA4189/C621A/ VGA, 2xRJ45/ ATX

959,93€ PVP

Comprar

Consultar

● Chipset: Intel C621A ● Formato: ATX ● Hdmi: No ● Imagen Salida: Graficos en CPU, VGA ● Memoria Maxima: 128GB ● Microprocesador Integrado: No ● Multi-Grafica: No ● Nº Bancos De Memoria: 8 ● Nº Conexiones SATA: 3 ● Nº USB 3.0: 4 Traseros, 2 Interno ● Pci: 7 PCIe x16 ● Raid: Si ● SATA 6Gb/S: 3 ● Socket: Intel LGA 4189 ● Tecnologia De Memoria: LRDImm 3DS ● Tipo De Raid: 0,1,10,5 ● USB 3.0: Si ● USB3.0 Interno: Si

GIGABYTE

PN:9MU72SU0MR-00-10G

PLACA BASE GIGABYTE SERVER MU72-SU0

LGA4189/C621A/ VGA, 2xRJ45/ ATX

959,93€ PVP

Comprar

Consultar

●Chipset: Intel C621A
●Formato: ATX
●Hdmi: No
●Imagen Salida: Graficos en CPU, VGA
●Memoria Maxima: 128GB
●Microprocesador Integrado: No
●Multi-Grafica: No
●Nº Bancos De Memoria: 8
●Nº Conexiones SATA: 3
●Nº USB 3.0: 4 Traseros, 2 Interno
●Pci: 7 PCIe x16
●Raid: Si
●SATA 6Gb/S: 3
●Socket: Intel LGA 4189
●Soporta Optane: No
●Tecnologia De Memoria: LRDImm 3DS
●Tipo De Raid: 0,1,10,5
●USB 3.0: Si
●USB3.0 Interno: Si

Procesadores escalables Intel® Xeon® de 3.ª generación
Familia de procesadores Intel® Xeon® W- 3300
Procesador único, tecnología de 10 nm
RDIMM/LRDIMM DDR4 de 8 canales por procesador, 8 x DIMM
Admite la memoria persistente Intel® Optane™ serie 200
Conjunto de chips Intel® C621A
Puerto LAN dual de 1 Gb/s (Intel® I210 -AT)
1 x puerto de gestión dedicado
3 x SlimSAS para 12 x puertos SATA de 6 Gb/s
1 x ranura M.2 con interfaz PCIe Gen3 x4
Hasta 7 x ranuras de expansión PCIe Gen4

Especificaciones:

Form Factor

ATX
304.8W x 244D (mm)

CPU

3rd Generation Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
Single processor, 10nm technology
CPU TDP up to 270W

Intel® Xeon® W-3300 Processor Family
CPU TDP up to 270W

Socket

1 x LGA 4189
Socket P+

Chipset

Intel® C621A Chipset

Memory

8 x DIMM slots
DDR4 memory supported only
8-channel memory architecture per processor
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz

LAN

2 x 1Gb/s LAN ports (Intel® I210-AT)
1 x 10/100/1000 management LAN

Video

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Audio

N/A

SAS

N/A

SATA

3 x SlimSAS for 12 x SATA III 6Gb/s ports

RAID

Intel® SATA RAID 0/1/10/5

Expansion Slots

Slot_7: 1 x PCIe x16 (Gen4 x16 bus) slot
Slot_6: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot, shared with Slot_5
Slot_5: 1 x PCIe x16 (Gen4 x0 or x8 bus) slot
Slot_4: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot, shared with Slot_3
Slot_3: 1 x PCIe x16 (Gen4 x0 or x8 bus) slot
Slot_2: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot, shared with Slot_1
Slot_1: 1 x PCIe x16 (Gen4 x0 or x8 bus) slot

1 x M.2 slot:
- M-key
- PCIe Gen3 x4 per slot
- Supports NGFF-2280 cards

Internal I/O

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 6-pin ATX 12V power connector (for PCIe slot)
3 x SlimSAS connectors
1 x M.2 slot
1 x CPU fan header
6 x System fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x Buzzer

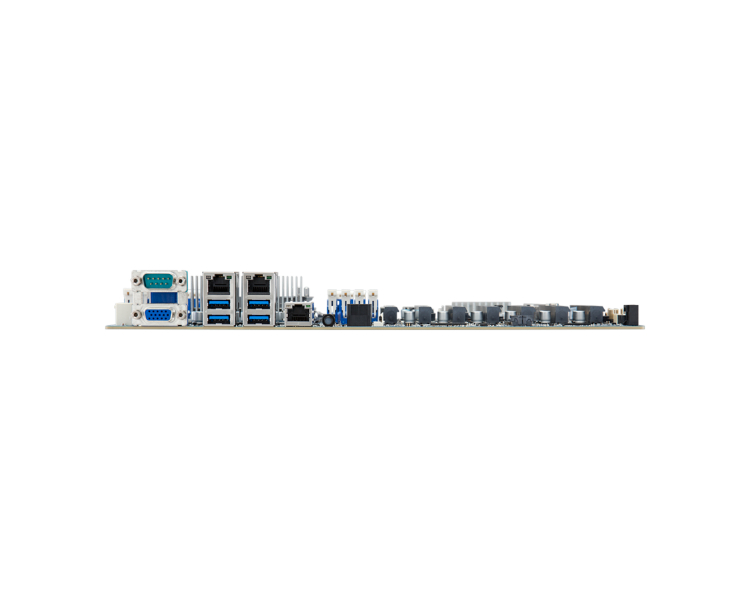

Rear I/O

4 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

OS Compatibility

Windows Server 2016
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 7.9 (x64) or later
Red Hat Enterprise Linux 8.2 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later

Board Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

PSU Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 6-pin PCIe power connector

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Las especificaciones e imágenes están sujetas a cambios sin previo aviso. Todas las marcas y logotipos son propiedad de sus respectivos fabricantes. La foto puede mostrar otros productos que se venden por separado.
