PN:90MB19P0-M0EAYC

PLACA BASE PRIME H610M-A D4 CSM ASUS

LGA1700/H610/ DDR4/ 1xHDMI, 1xDP, 1xD-SUB/ mATX

93,33€ PVP

Comprar

Con stock

● Chipset: Intel H610 ● Formato: Micro ATX ● Imagen Salida: Graficos en CPU, D-SUB, HDMI, Displayport ● Microprocesador Integrado: No ● Nº Bancos De Memoria: 2 ● Nº Conexiones SATA: 4 ● SATA 6Gb/S: 4 ● Socket: Intel LGA 1700 ● Tecnologia De Memoria: DDR4 ● Tipo De Raid: No

PN:90MB19P0-M0EAYC

PLACA BASE PRIME H610M-A D4 CSM ASUS

LGA1700/H610/ DDR4/ 1xHDMI, 1xDP, 1xD-SUB/ mATX

93,33€ PVP

Comprar

Con stock

●Chipset: Intel H610
●Formato: Micro ATX
●Imagen Salida: Graficos en CPU, D-SUB, HDMI, Displayport
●Microprocesador Integrado: No
●Nº Bancos De Memoria: 2
●Nº Conexiones SATA: 4
●SATA 6Gb/S: 4
●Socket: Intel LGA 1700
●Tecnologia De Memoria: DDR4
●Tipo De Raid: No

Zócalo Intel® LGA 1700: Listo para procesadores Intel® de 12.ª generación
Refrigeración integral: disipador térmico VRM, disipador térmico PCH y Fan Xpert 2+
Conectividad ultrarrápida: ranura M.2 de 32 Gbps, puertos Intel ® 1 Gb Ethernet y USB 3.2 Gen 2
Aura Sync RGB: encabezados Gen 2 direccionables incorporados para tiras de LED RGB, sincronizados fácilmente con hardware compatible con Aura Sync
ASUS Control Center Express (ACCE) para facilitar la gestión de terminales de TI

Especificaciones:

CPU

Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® H610 Chipset

Memory

2 x DIMM, Max. 64GB, DDR4 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphics

1 x DisplayPort**
1 x D-Sub port
1 x HDMI® port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel® 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel® H610 Chipset
1 x PCIe 3.0 x1 slot

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
4 x SATA 6Gb/s ports

Ethernet

1 x Intel® 1Gb Ethernet

Wireless & Bluetooth

V-M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately.

USB

Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

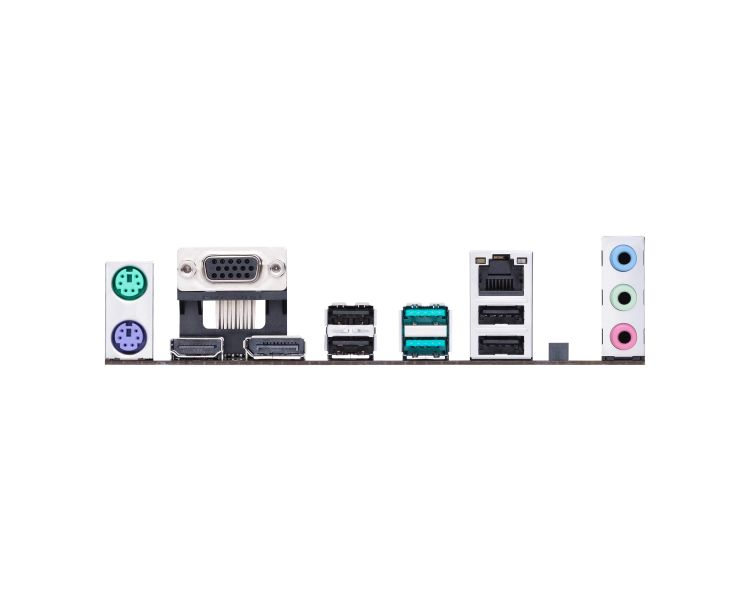

Back Panel I/O Ports

2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x D-Sub port
1 x V-M.2 slot (Key E)
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Form Factor

mATX Form Factor
9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)

Las especificaciones e imágenes están sujetas a cambios sin previo aviso. Todas las marcas y logotipos son propiedad de sus respectivos fabricantes. La foto puede mostrar otros productos que se venden por separado.
